Introduction to the WPD Wide Range Horizontal Spiral Wing Water Meter

Water is the planet's most precious asset, and accurate measurement is central to efficient and equitable water resource management. In large-pipeline and high-flow applications, the demand for water meters extends beyond simple counting; it requires a meter capable of wide measuring range and exceptional long-term reliability. It is in this context that the WPD Wide Range Horizontal Spiral Wing Water Meter was developed, becoming an indispensable instrument in modern water resource metering.

The Role and Importance of the WPD Wide Range Horizontal Spiral Wing Water Meter in Modern Water Resource Management

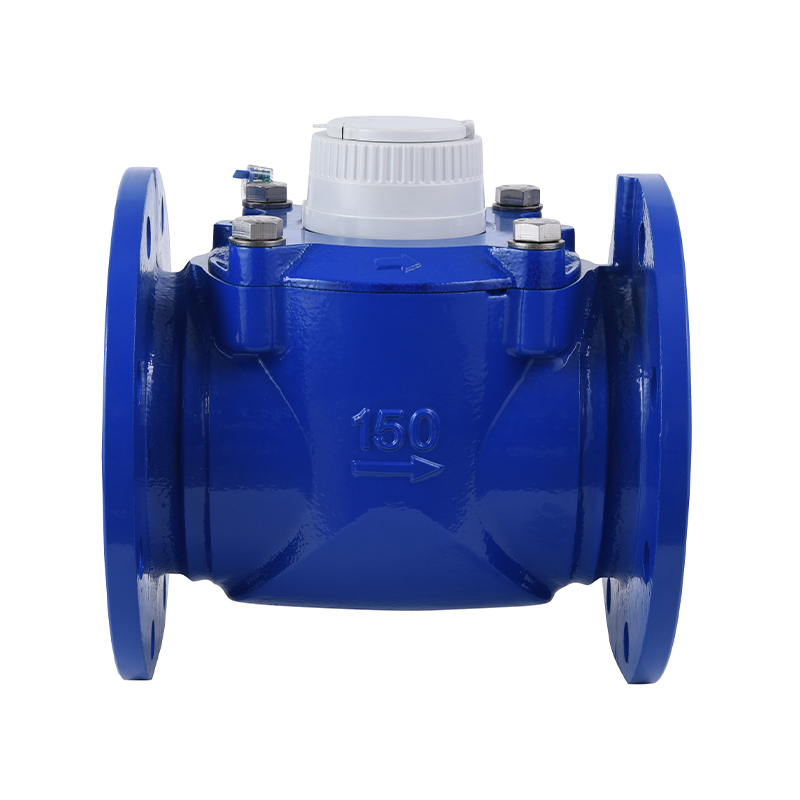

The WPD Wide Range Horizontal Spiral Wing Water Meter is a velocity-type meter designed to meet the precise measurement needs in high-velocity, large-diameter environments such as municipal water supply, large-scale industrial use, and agricultural irrigation. Compared to traditional single-jet or multi-jet meters, the WPD Water Meter's primary feature is its "wide range" capability. This means it maintains high accuracy (Accuracy) across an extremely broad flow spectrum—from minute leak flows to peak full-load flows. This performance is crucial for water utilities managing District Metered Areas (DMAs) and controlling losses, as it effectively identifies and quantifies "Non-Revenue Water," directly impacting corporate profitability and water sustainability.

Why Accurate Water Flow Measurement is Vital for Users

Whether for residential users, commercial enterprises, or large industrial companies, accurate water flow measurement is the foundation for fair transactions and optimized resource allocation.

For Water Providers: Ensuring every drop of water is precisely recorded is prerequisite to revenue protection. Furthermore, monitoring with the high-precision WPD Wide Range Horizontal Spiral Wing Water Meter allows for timely detection and resolution of pipe leaks or abnormal consumption.

For Commercial and Industrial Users: Water costs often represent a significant operational expense. The reliable data provided by the WPD Water Meter assists businesses with meticulous cost accounting, process water monitoring, and water conservation improvements.

For Agricultural Users: In irrigation, precise measurement of water consumption is essential for controlling application volumes, preventing over-extraction, and achieving scientific water utilization.

Design and Company Strength Behind the WPD Water Meter

The high performance of the WPD Wide Range Horizontal Spiral Wing Water Meter is inseparable from the professional design and manufacturing strength supporting it. Ningbo Water Cube Instrument Technology Co., Ltd. is a specialized company focused on producing large-diameter water meters and water meter movements.

Ningbo Water Cube Instrument Technology Co., Ltd. possesses a complete and robust industrial chain, covering aspects from product design and development, mold manufacturing, injection molding processing, to assembly and verification. The company adheres to the corporate tenet of "Quality First, Reputation First," utilizing accumulated experience and the latest technology to provide the market with high-quality metering products. It is precisely due to the strength of the Water Cube expert team and its complete industrial chain that the WPD Water Meter achieves the accuracy and reliability favored by customers. The company also maintains long-term cooperation with numerous domestic enterprises and is widely recognized within the industry.

Overview of the Key Advantages of the WPD Wide Range Horizontal Spiral Wing Water Meter

The WPD Water Meter, through its unique design, combines the durability of traditional mechanical meters with the precision of modern metering devices. Its horizontal installation ensures stable water flow as it enters the spiral wing vanes, effectively minimizing the impact of turbulence on measurement. Crucially, its Spiral Wing structure is specifically designed for high flow and low resistance, ensuring reliable metering across a wide range while maintaining low Head Loss. These characteristics of the WPD Wide Range Horizontal Spiral Wing Water Meter make it the ideal choice for applications demanding strict standards for metering accuracy, flow range, and long-term stability.

Working Principle and Core Components of the WPD Water Meter

To understand the superior performance of the WPD Wide Range Horizontal Spiral Wing Water Meter, one must examine its core metering principle and precise structural design. As a velocity-type meter, its operation is based on fluid dynamics, converting the volume of water flowing through the meter into measurable mechanical motion.

Working Principle of the Horizontal Spiral Wing Water Meter: From Water Flow to Measurement

The operation of the WPD Wide Range Horizontal Spiral Wing Water Meter (WPD Water Meter) is based on velocity measurement. Water flows in a specific direction through the meter's internal measuring chamber, driving the rotation of the Spiral Wing impeller installed in the flow path.

Flow Drive: The meter incorporates a special flow guiding structure to ensure that the water flow impacts the vanes evenly and smoothly upon reaching the spiral wing. The higher the water velocity, the faster the spiral wing rotates.

Relationship between Speed and Flow Rate: Within the designated flow range, the rotational speed of the spiral wing is directly proportional to the instantaneous Flow Rate passing through the meter.

Mechanical Conversion and Display: The rotation of the spiral wing is transmitted to the meter's counter via a precise transmission system (typically involving a magnetic coupling or gear train). The magnetic coupling design effectively isolates the water-wetted parts from the counter, ensuring the counter remains dry and clean, and preventing scaling or debris from interfering with readings. The counter accumulates the recorded rotations and converts them into the cumulative volume (e.g., cubic meters) readable by the user.

The key to the WPD Wide Range Horizontal Spiral Wing Water Meter's ability to achieve "wide range" measurement lies in its Horizontal installation and the special geometric shape of its Spiral Wing. Horizontal installation ensures smooth axial flow, while the optimized spiral wing vanes are highly sensitive to low flow rates while effectively handling high-velocity impacts, preventing excessive wear and measurement deviation.

Design and Key Components: The Material Basis for High-Precision Metering

A high-quality WPD Wide Range Horizontal Spiral Wing Water Meter depends on the precise manufacturing and stringent control of every component. In this regard, Ningbo Water Cube Instrument Technology Co., Ltd. leverages its complete industrial chain advantages to ensure product excellence.

Water Cube, as a company specializing in the production of large-diameter water meters and meter movements, has deep expertise in mold manufacturing and injection molding processing. This is critical for manufacturing the high-precision, low-friction Spiral Wing and metering mechanism. The company places stringent material selection and fine control over manufacturing tolerances at the core of its quality policy, as emphasized by its corporate tenet: "Quality First, Reputation First." It is this dedication to detail that ensures every WPD Wide Range Horizontal Spiral Wing Water Meter meets rigorous metering standards and achieves outstanding long-term reliability.

WPD Wide Range Horizontal Spiral Wing Water Meter Structure Diagram and Function Description

Structurally, the WPD Water Meter's horizontal design means water flows along the horizontal axis. Its core metering mechanism is mounted on the central axis of the pipeline. This allows the meter to handle higher Flow Rates and velocities than multi-jet meters while minimizing Head Loss. This design advantage makes it the preferred choice for large-diameter and high-flow applications. The flow is stable, and the moment of inertia is low, which is the technical guarantee for the WPD Wide Range Horizontal Spiral Wing Water Meter to achieve high accuracy across a wide range.

Key Characteristics and Advantages of the WPD Wide Range Water Meter

The WPD Wide Range Horizontal Spiral Wing Water Meter holds an important position in the market because its optimized design, building upon traditional spiral wing meters, addresses the common issue of insufficient accuracy in large-diameter meters at low flow rates, thus offering a series of unparalleled advantages.

Wide Range Metering Capability: High Accuracy Across Different Flow Velocities

This is the most crucial selling point of the WPD Wide Range Horizontal Spiral Wing Water Meter. Traditional velocity-type meters often experience a sharp drop in accuracy at low flow rates, leading to water companies being unable to accurately meter the low flows during nighttime or off-peak hours, particularly subtle flows caused by pipe leaks.

Wide Measurement Range Design: The WPD Water Meter achieves an extremely high range ratio (R-value) through precision Spiral Wing vanes and an optimized metering chamber structure. This means it maintains the required accuracy limits (typically ± 2% or ± 5% according to international standards like ISO 4064) from the extremely low starting flow (Qmin) up to the maximum continuous flow (Qmax).

This capability of the WPD Water Meter is vital for water utilities managing Non-Revenue Water (NRW), as it can accurately measure low flows that would otherwise be ignored, thereby improving overall revenue and data reliability.

Robust and Durable Structural Design

As a large-diameter water meter, durability is key to ensuring stable long-term operation.

Durable Construction: Ningbo Water Cube Instrument Technology Co., Ltd. has years of experience in water meter manufacturing and understands the critical role of material quality in product lifespan. The body of the WPD Wide Range Horizontal Spiral Wing Water Meter is typically made from high-quality cast iron or ductile iron, offering excellent resistance to pressure and corrosion. Internal components, especially the wear-prone Spiral Wing and bearings, utilize highly wear-resistant, low-friction composite materials, effectively extending the meter's service life and reducing maintenance frequency.

Convenience and Benefits of Horizontal Installation

Horizontal Installation: The WPD Water Meter is designed for horizontal installation, which not only complies with most pipeline system installation codes but also ensures stable axial flow upon entering the metering chamber. Stable flow is the basis for achieving high-precision Water Flow Measurement. The installation process is relatively simple and easily compatible with existing pipeline systems.

Role of Spiral Wing Design in Improving Accuracy

Spiral Wing Design: The spiral wing vanes of the WPD Wide Range Horizontal Spiral Wing Water Meter differ from standard impeller meters; their design is more streamlined, approaching the shape of a turbine. This design optimizes the angle of water impact, reducing fluid resistance while increasing the impeller's rotational sensitivity at low flow rates.

Leveraging Water Cube's expertise in product design and development and mold manufacturing, the geometric precision and dynamic balance of the spiral wing vanes are ensured. This is the core technical guarantee for achieving excellent Accuracy across the wide measurement range.

Efficiency Reflected in Low Head Loss

Low Head Loss: Large-diameter water meters are installed on main pipelines, and excessive head loss can cause a drop in upstream Pressure, affecting the stability of the water supply service and user experience. The streamlined internal structure and optimized spiral wing of the WPD Wide Range Horizontal Spiral Wing Water Meter minimize flow resistance, allowing the meter to maintain very low pressure loss even when handling high Flow Rates. This not only improves system energy efficiency but also ensures stable water pressure in the pipeline network.

Smart Upgrade Potential and Optional Accessories

To adapt to the trend of intelligent water management, the WPD Water Meter typically offers good scalability.

Optional Accessories: It can integrate pulse emitters, M-Bus, or LoRaWAN modules to enable remote data acquisition and transmission. This allows the WPD Wide Range Horizontal Spiral Wing Water Meter to integrate seamlessly into modern Municipal Water Distribution IoT systems, enabling real-time Industrial Water Monitoring and data analysis. Additionally, sensors for monitoring water Temperature and system Pressure can be equipped based on user requirements, providing more comprehensive operational data.

Wide Application Fields of the WPD Water Meter

The high precision, wide range, and excellent durability of the WPD Wide Range Horizontal Spiral Wing Water Meter make it an ideal choice for various water metering scenarios, especially in applications requiring the handling of large flows and complex flow regimes.

Residential Water Metering

Although the WPD Water Meter is primarily designed for large diameters, its role is crucial on the main inlet pipes of large apartment buildings or integrated residential complexes.

In master metering for multi-unit dwellings, the WPD Wide Range Horizontal Spiral Wing Water Meter accurately captures the huge flow variations, from extremely low nighttime consumption (such as tank refills, minor leaks) to daytime peak usage (such as simultaneous bathing).

This accurate water flow measurement ensures fair billing between property management companies and water suppliers and provides reliable total volume data for internal sub-metering allocation.

Commercial Water Metering

In commercial premises such as office buildings, shopping centers, hospitals, and hotels, water consumption fluctuates widely and features high peaks.

The WPD Water Meter can easily handle the momentary high Flow Rate impacts during periods like lunchtime or peak holiday traffic, while still maintaining sensitivity to low flows during off-hours.

The stable and reliable WPD Wide Range Horizontal Spiral Wing Water Meter provided by Ningbo Water Cube Instrument Technology Co., Ltd. helps commercial customers achieve fine-tuned water expense management and energy auditing, assisting businesses in controlling operating costs.

Agricultural Irrigation

Agriculture is a major consumer of water resources, and precise measurement of irrigation water is a prerequisite for achieving water conservation and efficient irrigation.

At the main water intake points of large farms and irrigation systems, the WPD Water Meter provides reliable metering data. Its Durable Construction can withstand harsh outdoor environmental conditions.

The Wide Range characteristic of the WPD Wide Range Horizontal Spiral Wing Water Meter ensures that even when the irrigation pump station starts or stops, causing drastic flow changes, metering Accuracy is maintained, providing data support for developing scientific irrigation plans.

Industrial Water Monitoring

In industrial sectors such as steel, chemical, power, and food processing, monitoring process water is crucial, as it directly relates to product quality and environmental compliance.

The WPD Water Meter is often used to monitor the total volume of cooling water, production water, and wastewater discharge. Its low Head Loss feature ensures minimal impact on high-flow process operations.

By integrating remote reading capabilities (optional accessories), the WPD Wide Range Horizontal Spiral Wing Water Meter enables real-time Industrial Water Monitoring, helping factories instantly detect abnormal consumption, perform process control, and manage leaks.

Municipal Water Distribution

This is the most critical application area for the WPD Water Meter. In urban water distribution networks, it serves two main functions:

Source Master Metering: Used at the water treatment plant outlet or on main regional supply pipelines to precisely meter the total volume entering the entire service area.

District Metering (DMA): At the boundaries of District Metering Areas, the Wide Range performance of the WPD Wide Range Horizontal Spiral Wing Water Meter is essential for accurately calculating the DMA water balance. It reliably captures Minimum Night Flow (MNF), a critical indicator for assessing leaks in the area.

Water Cube, with its professional experience and complete industrial chain in large-diameter water meter manufacturing, is dedicated to providing metering solutions that meet the stringent standards of Municipal Water Distribution. The company's high-quality WPD Wide Range Horizontal Spiral Wing Water Meter helps city managers improve the efficiency and reliability of their water supply systems.

WPD Wide Range Horizontal Spiral Wing Water Meter Technical Specifications Explained

Understanding the technical specifications of the WPD Wide Range Horizontal Spiral Wing Water Meter is fundamental for correct selection, installation, and performance assurance. These parameters define the meter's operational limits and metering performance.

Available Sizes, Flow Range, and Pressure Rating

As a typical representative of large-diameter water meters, the WPD Water Meter specifications generally cover most sizes required for municipal and industrial applications.

Accuracy Class and Wide Range Definition

Metering Accuracy is the core metric for evaluating water meter performance. The wide-range characteristic of the WPD Wide Range Horizontal Spiral Wing Water Meter is expressed through its Range Ratio (R-value).

Metering Standards: WPD Water Meters typically comply with international standards such as ISO 4064 or the European Measuring Instruments Directive (MID).

Accuracy Class: According to standards, the meter must meet different accuracy requirements within two flow zones:

Between Qmin and Qt (Transitional Flow): The Maximum Permissible Error (MPE) is typically ± 5%.

Between Qt and Qmax: The Maximum Permissible Error (MPE) is typically ± 2%.

Range Ratio (R): R = Qmax / Qmin. Traditional spiral wing meters may have lower R values, whereas the WPD Wide Range Horizontal Spiral Wing Water Meter is designed to achieve higher R values (e.g., R80, R100, R160, and higher). This is a direct reflection of its Wide Range advantage. A high R value means the meter maintains high precision across a broader range of Flow Rates.

Head Loss Parameter

Head loss is an important parameter for evaluating meter efficiency. High-quality WPD Water Meters are designed to minimize internal resistance.

Pressure Loss Requirements: According to standards, the head loss caused by the meter at the continuous flow Q3 (approximately equal to Qmax) should be less than a specific value (e.g., 63 kPa or 100 kPa).

The WPD Water Meter, through its streamlined internal structure and horizontal Spiral Wing design, effectively controls Head Loss, ensuring minimal impact on system Pressure during high Flow Rate operation.

Material Specifications and Manufacturing Process

The long-term stability and reliability of the water meter depend on superior materials and manufacturing processes.

Body Material: Typically uses cast iron, ductile iron, or bronze alloy that meets drinking water safety standards, ensuring Durable Construction and corrosion resistance.

Internal Component Material: Moving parts such as the Spiral Wing, bearings, and gears must use high-performance, low-friction engineering plastics or stainless steel to resist wear and scale accumulation, ensuring long-term metering Accuracy.

Ningbo Water Cube Instrument Technology Co., Ltd. specializes in the production of large-diameter water meters and understands the critical influence of materials and processes on the final product. The company strictly controls materials and manufacturing precision in its mold manufacturing, injection molding processing, and rigorous assembly and verification procedures. It is this attention to detail that allows the WPD Wide Range Horizontal Spiral Wing Water Meter to exhibit superior performance in meeting stringent Temperature, Pressure, and Flow Rate specifications, thus fulfilling the corporate tenet of "Quality First, Reputation First."

WPD Water Meter Installation Guide

Correct installation is crucial for ensuring the long-term stable and accurate metering of the WPD Wide Range Horizontal Spiral Wing Water Meter. Incorrect installation can lead to inaccurate readings and reduce the meter's lifespan. Strict adherence to the manufacturer's installation requirements and local pipeline codes is mandatory.

Preparing the Installation Site: Ensuring an Ideal Metering Environment

Before installing the water meter, thorough preparation must be carried out to eliminate factors that could affect metering.

Determine Installation Location:

The WPD Wide Range Horizontal Spiral Wing Water Meter must be installed in a location that is easily accessible for reading, maintenance, and inspection.

Ensure the meter is protected from freezing, strong vibrations, or external impact.

Required Straight Pipe Lengths: To ensure a smooth, non-turbulent flow profile upon entering the meter, sufficient straight pipe lengths must be left upstream and downstream of the meter. This is a key prerequisite for the WPD Water Meter to achieve its designed Accuracy.

Upstream Straight Length: Typically requires no less than 10 times the nominal diameter (DN) of the meter (10D).

Downstream Straight Length: Typically requires no less than 5 times the nominal diameter (DN) of the meter (5D).

*(Note: Any valves, elbows, or pumps should be located as far away from the meter as possible.)*

Pipe Flushing: Before installation, the pipeline must be thoroughly flushed to remove weld slag, sediment, stones, or other debris that could damage the Spiral Wing impeller or block the filter.

Accessory Installation: Ensure that necessary shut-off valves (one before and one after the meter) and a filter (usually installed upstream) are already in place at the installation site for easy future maintenance.

Step-by-Step Installation Procedure: Ensuring Correct Setup

The WPD Wide Range Horizontal Spiral Wing Water Meter is a horizontal meter with strict requirements regarding the installation direction.

Check Direction: Carefully check the flow direction arrow on the meter casing. Ensure the meter's installation direction perfectly aligns with the water flow direction inside the pipe.

Ensure Level Position: The WPD Water Meter must be installed horizontally, meaning the counter face should be facing up and parallel to the ground. Horizontal Installation is the basis for its designed performance.

Align Connections: Align the meter with the designated pipe space. Ningbo Water Cube Instrument Technology Co., Ltd. recommends using the correct flange connectors. Ensure that the flange mating faces are aligned and parallel to avoid forcing the connection, which could cause stress or deformation to the meter body.

Install Gaskets: Place new, correct sealing gaskets between the two flange faces.

Tighten Bolts: Tighten the flange bolts gradually and symmetrically. Do not tighten one bolt fully at a time; instead, tighten in stages in a cross-symmetrical pattern to ensure uniform Pressure distribution and reliable sealing to prevent leaks.

Ensuring Proper Sealing: Preventing Leaks and Air Bubbles

Importance of Sealing: Proper sealing is vital for preventing external leakage. Leaks not only cause water resource loss but can also compromise the metering environment of the WPD Wide Range Horizontal Spiral Wing Water Meter.

Air Purging: After the meter is installed, slowly open the upstream valve, allowing water to fill the meter and downstream pipe slowly to expel air and bubbles from the pipeline. Rapid filling may cause the meter to momentarily overspeed, affecting its lifespan. Complete air purging is an important step for achieving accurate water flow measurement.

Initial Operation Check: Check all connection points for signs of leakage. After running for a period, check the flange bolts again for any need for further tightening.

Water Cube, as a professional large-diameter water meter manufacturer, guarantees that its products are designed to meet strict installation standards. We strongly recommend that installers refer to the detailed instruction manual provided with the product during Water Meter Installation to ensure the WPD Wide Range Horizontal Spiral Wing Water Meter achieves its intended high precision and long lifespan advantages.

Maintenance and Troubleshooting: Ensuring Long-Term Stable Operation of the WPD Water Meter

Even high-quality meters like the WPD Wide Range Horizontal Spiral Wing Water Meter, with their Durable Construction, require regular maintenance and inspection to ensure they maintain high Accuracy and stable performance over the long term.

Routine Inspection: Maintaining the Optimal Condition of the WPD Water Meter

Regular preventive inspection is the most effective way to prevent meter faults and metering errors.

Visual Inspection:

Counter Condition: Check that the counter glass is clear and dry, without fogging or damage. Ensure the digital readout is legible.

Leak Check: Inspect the meter body, flange connections, and any accessories (such as pressure sensors or pulse output cables) for signs of dripping or seepage. Any leak can affect accurate water flow measurement.

External Appearance Check: Inspect the meter body for external damage, corrosion, scaling, or signs of abnormal external impact.

Operational Status Check:

Flow Observation: Observe whether the Spiral Wing rotates smoothly when the meter is operating. At low Flow Rates (e.g., at night), check if the meter is still responding to verify its Wide Range performance.

System Pressure Check: For WPD Wide Range Horizontal Spiral Wing Water Meters equipped with pressure monitoring accessories, regularly check that the system Pressure is within the maximum working pressure limits.

Cleaning Procedure: Removing Impurities Affecting Accuracy

Although WPD Water Meters are typically installed with an upstream filter, fine impurities can still accumulate over time and affect metering accuracy.

Filter Cleaning: Regularly check and clean the filter installed upstream of the meter. Remove accumulated sediment, scale, or foreign matter to prevent them from causing increased Head Loss and unstable flow velocity.

Internal Meter Cleaning (Professional Procedure): If it is suspected that the internal Spiral Wing or metering mechanism is jammed or contaminated by debris, qualified personnel must shut off the valves, relieve the pipeline Pressure, and disassemble the meter for inspection and cleaning. Ningbo Water Cube Instrument Technology Co., Ltd. recommends that users seek professional Water Meter Maintenance services to avoid damaging internal precision components.

Troubleshooting: Resolving Common Issues (Water Meter Troubleshooting)

Ningbo Water Cube Instrument Technology Co., Ltd. maintains robust assembly and verification procedures to ensure that the WPD Wide Range Horizontal Spiral Wing Water Meter leaving the factory has extremely high reliability. Nevertheless, we encourage users to strictly adhere to installation and maintenance specifications. With the experience of its expert team, the company provides professional Water Meter Troubleshooting guidance and technical support to fulfill its commitment to "Quality First, Reputation First," ensuring the product serves the user accurately for the long term.

Comparative Advantages: WPD Water Meter vs. Other Metering Technologies

The WPD Wide Range Horizontal Spiral Wing Water Meter holds unique advantages in the field of large-diameter, high-flow metering. A comparison with other mainstream meter types on the market clarifies the application value and technical positioning of the WPD Water Meter, especially where there is a combined requirement for cost, reliability, and Wide Range performance.

WPD Water Meter vs. Positive Displacement Meters

Positive displacement meters (such as piston or rotary piston meters) measure by precisely isolating and counting the volume of fluid, typically used for small-diameter, low-flow residential applications, offering excellent low-flow accuracy.

The advantage of the WPD Water Meter lies in its capacity to handle large flows and its extremely low Head Loss, making it an ideal choice for municipal main pipelines and industrial supply, areas where positive displacement meters cannot be used.

WPD Water Meter vs. Ultrasonic Water Meters

Ultrasonic water meters are modern, high-tech metering instruments that measure flow rate by transmitting ultrasonic signals through the water, with no moving parts.

The WPD Wide Range Horizontal Spiral Wing Water Meter performs better in terms of cost-effectiveness and reliability in harsh water quality environments. Ningbo Water Cube Instrument Technology Co., Ltd., leveraging its complete industrial chain and focus on mechanical manufacturing of large-diameter water meters, can offer high-quality, long-life WPD Water Meters at a more competitive cost.

WPD Water Meter vs. Electromagnetic Water Meters

Electromagnetic meters use Faraday's law of electromagnetic induction to measure the flow of conductive liquids, also featuring no moving parts and extremely low Head Loss.

The advantage of the WPD Wide Range Horizontal Spiral Wing Water Meter lies in its broad applicability (no conductivity requirement) and lower investment cost, making it a reliable alternative for many Municipal Water Distribution projects. In summary, the WPD Wide Range Horizontal Spiral Wing Water Meter successfully achieves an excellent balance between the three key factors: High Flow, Low Head Loss, and Wide Range. Water Cube utilizes the latest technology and accumulated experience, ensuring in the design and assembly and verification process that the WPD Water Meter maximizes these advantages, earning the favor of a wide range of customers. The company welcomes industry colleagues to visit and provide guidance to jointly advance metering technology.

FAQ

How to determine the correct size for the WPD Wide Range Horizontal Spiral Wing Water Meter?

Selecting the correct nominal diameter (DN) is critical. Sizing is primarily based on the following factors:

Maximum Continuous Flow (Qmax): The Qmax of the meter must be greater than or equal to the system's anticipated maximum Flow Rate.

Normal Flow (Qn): Ensure that the flow at which the system operates most of the time is within the meter's optimal operating range (typically between Qt and Qmax).

Head Loss: Select a diameter that can maintain Low Head Loss at the anticipated flow rate, based on the system's strict requirements for Pressure loss.

Ningbo Water Cube Instrument Technology Co., Ltd. recommends that customers provide detailed system operating parameters during the selection process so that the company's technical experts can recommend the most suitable model based on the detailed technical specifications of the WPD Wide Range Horizontal Spiral Wing Water Meter, ensuring its Accuracy and long-term operating efficiency.

What is the typical service life of a WPD Water Meter?

The lifespan of a WPD Wide Range Horizontal Spiral Wing Water Meter primarily depends on its Durable Construction, manufacturing quality, and operating environment.

Manufacturing Quality: High-quality WPD Water Meters manufactured by Water Cube, through their rigorous mold manufacturing and assembly and verification procedures, ensure the durability and stability of internal components, especially the Spiral Wing.

Expected Lifespan: Under normal working Pressure and Temperature ranges, and with appropriate Water Meter Maintenance, the WPD Water Meter can typically operate safely and stably for 10 to 15 years, or even longer.

Does the WPD Wide Range Horizontal Spiral Wing Water Meter require periodic calibration?

Yes. Any mechanical metering device will experience accuracy drift over time due to wear and tear.

Legal Requirements: Depending on local and national metrology regulations, the WPD Water Meter is subject to mandatory verification cycles (usually every few years).

Performance Assurance: Even without mandatory requirements, periodically checking the calibration (e.g., every 5 years) of the WPD Water Meter ensures that its Wide Range metering performance continues to meet the high Accuracy standard of ± 2%, which is particularly important for Municipal Water Distribution and commercial billing.

How can remote reading be implemented for the WPD Water Meter?

The WPD Wide Range Horizontal Spiral Wing Water Meter offers excellent intelligent expandability:

Pulse Output: Most WPD Water Meters can be optionally equipped with a pulse emitter to convert mechanical rotation into electrical pulse signals.

Smart Modules: These pulse signals can be connected to remote data acquisition modules (such as M-Bus, LoRa, or GPRS modules) to enable remote meter reading and real-time Industrial Water Monitoring.

Water Cube, during the product design and development phase for both meter movements and finished meters, fully considers the need for smart integration, ensuring customers can easily integrate the WPD Water Meter into modern AMI/AMR (Advanced Metering Infrastructure/Reading) systems.

Is the WPD Wide Range Horizontal Spiral Wing Water Meter suitable for hot water applications?

The maximum applicable Temperature for standard cold water WPD Wide Range Horizontal Spiral Wing Water Meters is typically 50°C.

Hot Water Customization: For hot water applications above 50°C (e.g., industrial circulating water or district heating), a specifically designed Hot Water WPD Water Meter must be used.

Hot water meters utilize special high-temperature resistant materials for internal components and seals to ensure structural stability and metering Accuracy in high-temperature environments. Customers must clearly communicate the maximum water temperature requirement to Ningbo Water Cube Instrument Technology Co., Ltd. when ordering.
