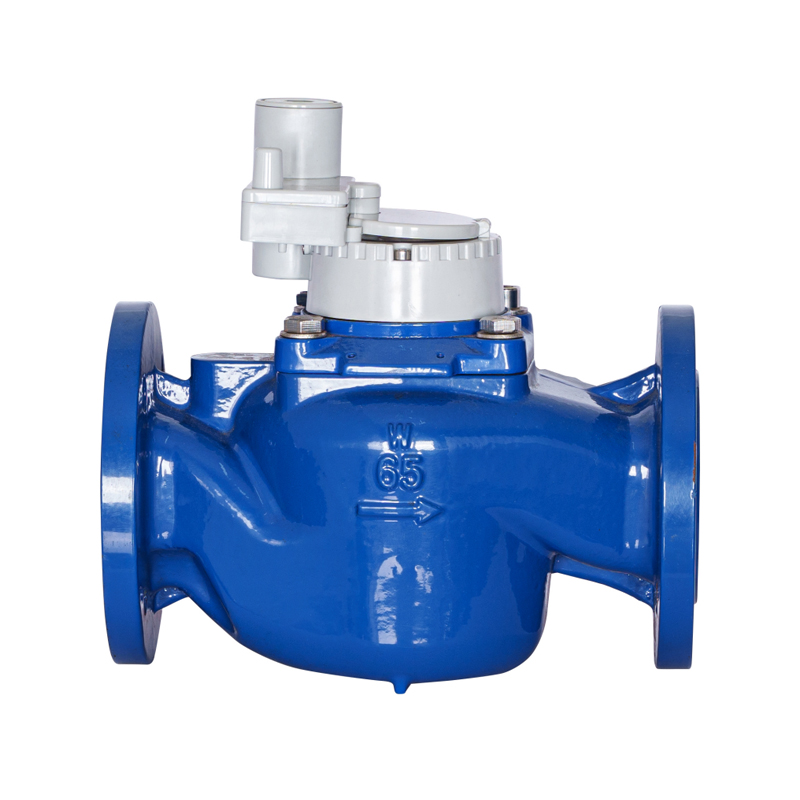

How the High-Precision Vertical Screw Wing Detachable Non-Magnetic Integrated Water Meter Ensures Stable, Accurate Flow Detection?
The High Precision Vertical Screw Wing Detachable Non Magnetic Integrated Water Meter represents a significant evolutionary step in fluid measurement technology, specifically designed to address the challenges inherent in large flow fluctuations within urban and industrial water networks. The primary innovation is the integration of a vertical screw wing mechanism with advanced non magnetic and photoelectric reading systems. This combination ensures that the instrument not only meets but exceeds stringent metrological requirements, fundamentally altering expectations for accuracy and reliability in dynamic piping environments. The manufacturer is a specialized High Precision Vertical Screw Wing Detachable Non Magnetic Integrated Water Meter manufacturer and factory, focused on optimizing this critical component for maximum performance.
Engineering Superiority and Wide Range Metrology
The core performance of the High Precision Vertical Screw Wing Detachable Non Magnetic Integrated Water Meter is derived from its unique hydraulic structure, which provides a level of flow detection precision and adaptability unattainable by conventional flow meters. This device is an intelligent water meter specially designed for large flow measurement in pipes ranging from DN40 to DN200.
Vertical Screw Wing Structure for Optimal Flow Capture
The adoption of the vertical screw wing structure is a deliberate choice made to enhance hydraulic efficiency and measurement accuracy, especially under conditions where flow rates vary dramatically.
Axial Flow Alignment: Water passes through the meter in an axial direction, aligning precisely with the rotation axis of the vertical screw wing. This design minimizes the radial forces and turbulence that typically affect horizontal meters, ensuring smooth, stable rotation of the measuring element.
Low Starting Flow Sensitivity: The large effective surface area and optimized angle of the vertical screw wing blades allow the High Precision Vertical Screw Wing Detachable Non Magnetic Integrated Water Meter to overcome static friction with minimal kinetic energy from the water flow. This translates directly into a remarkably low starting flow rate, enabling the accurate capture of consumption that often goes unregistered by less sensitive meters, such as minor leaks or low overnight usage.
Wide Measurement Range: The High Precision Vertical Screw Wing Detachable Non Magnetic Integrated Water Meter is inherently suited for occasions with large flow fluctuations. It maintains its prescribed accuracy across a vast dynamic range, accommodating both the minimal flows necessary for residential minimums and the high flows required during peak industrial or municipal demand. This wide range capability simplifies inventory and installation, as a single type of High Precision Vertical Screw Wing Detachable Non Magnetic Integrated Water Meter can be confidently deployed across varied application points.
Metrological Compliance: The accuracy of the High Precision Vertical Screw Wing Detachable Non Magnetic Integrated Water Meter is rigorously controlled and complies with the ISO4064 Class B standard. This international compliance ensures that the measurement data provided by the instrument is recognized and trusted globally, confirming its suitability for high value billing and regulatory purposes.
Environmental and Physical Adaptability
The practical utility of any measurement instrument is defined by its ability to perform reliably across the diverse environmental conditions it will encounter in the field. The High Precision Vertical Screw Wing Detachable Non Magnetic Integrated Water Meter demonstrates strong adaptability in two key areas: temperature and pressure stability.
Dual Temperature Range Compatibility:
The High Precision Vertical Screw Wing Detachable Non Magnetic Integrated Water Meter is applicable to both cold water and hot water measurement applications, eliminating the need for separate product lines.
Cold Water Measurement: Applicable to water temperatures ranging from 0℃ to 40℃.
Hot Water Measurement: Applicable to water temperatures ranging from 0℃ to 90℃.
Robust Material Specification:
This strong adaptability is achieved through the use of highly durable, temperature resistant materials for the screw wing and internal components, preventing thermal expansion or degradation that could compromise measurement integrity within the specified operating limits of the High Precision Vertical Screw Wing Detachable Non Magnetic Integrated Water Meter. This physical resilience ensures that the meter maintains its high precision over a prolonged service life.
Pressure Resilience:
While maintaining its sensitive metrology, the body of the High Precision Vertical Screw Wing Detachable Non Magnetic Integrated Water Meter is constructed to withstand the typical maximum operating pressures encountered in urban water supply and industrial systems, guaranteeing structural integrity and long term leak free performance.
How Non-Magnetic & Photoelectric Reading Enhance the High-Precision Vertical Screw Wing Detachable Non-Magnetic Integrated Water Meter?
The second pillar of the High Precision Vertical Screw Wing Detachable Non Magnetic Integrated Water Meter’s value proposition is its focus on data reliability, system security, and cost effective maintenance. By integrating non magnetic transmission and photoelectric direct reading technology, the meter ensures that the data it collects is trustworthy and easily accessible for modern digital management systems.
Data Integrity, Maintenance Efficiency, and System Integration
The design choices for the reading mechanism and physical structure are aimed at reducing common failure points and facilitating integration into smart water management ecosystems, ultimately lowering the total cost of ownership of the High Precision Vertical Screw Wing Detachable Non Magnetic Integrated Water Meter.
Enhanced Data Reliability through Reading Technology
The integrated non magnetic and photoelectric technologies represent a secure and highly reliable method for capturing the meter’s reading, addressing the two major vulnerabilities of older mechanical meters: external tampering and internal reading error.
Non Magnetic Integrated Structure: The term non magnetic is paramount for the integrity of the High Precision Vertical Screw Wing Detachable Non Magnetic Integrated Water Meter. The measurement process is entirely isolated from external magnetic fields. Traditional water meters that rely on magnetic coupling for transmission are susceptible to tampering using unauthorized magnets, leading to inaccurate or suppressed readings. By utilizing an advanced transmission system that removes magnetic components from the critical metering path, the High Precision Vertical Screw Wing Detachable Non Magnetic Integrated Water Meter becomes inherently immune to this widespread form of fraud, securing utility revenue and ensuring fair measurement.
Photoelectric Direct Reading Technology: This feature is central to the high reliability of the data output. The photoelectric direct reading technology captures the meter's reading directly from the numerical wheels displayed in the water meter window. By reading the actual digits displayed, this system avoids the inherent inaccuracies associated with traditional pulse counting meters, where accumulated data errors or missed pulses can lead to significant discrepancies between the mechanical register and the electronic record. The data provided by the High Precision Vertical Screw Wing Detachable Non Magnetic Integrated Water Meter is a true reflection of the mechanical counter, improving the overall reliability and accountability of the consumption records for billing and analysis.
Maintenance and Operational Efficiency
The physical design of the High Precision Vertical Screw Wing Detachable Non Magnetic Integrated Water Meter includes features that are specifically engineered to minimize service interruption and extend the overall lifespan of the instrument.
Removable Design for Facilitated Maintenance: The removable design is an essential feature for utility operators, allowing for the entire measurement mechanism to be swiftly and easily extracted from the main pipe body.The main meter casing remains connected to the pipeline, eliminating the need to drain and decouple large sections of pipe. This drastically reduces the time required for maintenance, calibration, or component replacement.By allowing for simplified cleaning and servicing of the critical internal elements like the screw wing and bearings, the removable design extends the operational service life of the complete High Precision Vertical Screw Wing Detachable Non Magnetic Integrated Water Meter unit, representing a long term reduction in capital expenditure.Calibration checks can be performed on the removed measuring unit in a controlled laboratory environment, ensuring that the High Precision Vertical Screw Wing Detachable Non Magnetic Integrated Water Meter remains highly accurate throughout its working life.
Intelligent Communication and Network Integration
As water resource management shifts toward intelligent, networked systems, the High Precision Vertical Screw Wing Detachable Non Magnetic Integrated Water Meter provides the necessary communication backbone.
Standardized Communication Interfaces: The meter supports the RS 485 interface and standard communication protocols. This intelligent communication capability allows for robust and standardized data transfer.The use of a standard communication bus like RS 485 ensures communication with third party devices, data collectors, and central servers without proprietary barriers.
Remote Meter Reading and Management: Through this intelligent communication framework, the High Precision Vertical Screw Wing Detachable Non Magnetic Integrated Water Meter enables remote meter reading and management. This capability eliminates the substantial labor and cost associated with manual meter reading and provides utilities with immediate access to consumption data for near real time billing, leak detection, and network analysis.
Application Versatility: The combination of high precision, structural stability, and communication capability ensures the High Precision Vertical Screw Wing Detachable Non Magnetic Integrated Water Meter is widely used in critical applications, including urban water supply, industrial water consumption monitoring, and comprehensive water resource management, thereby meeting the highest demands for intelligent and precise measurement.
