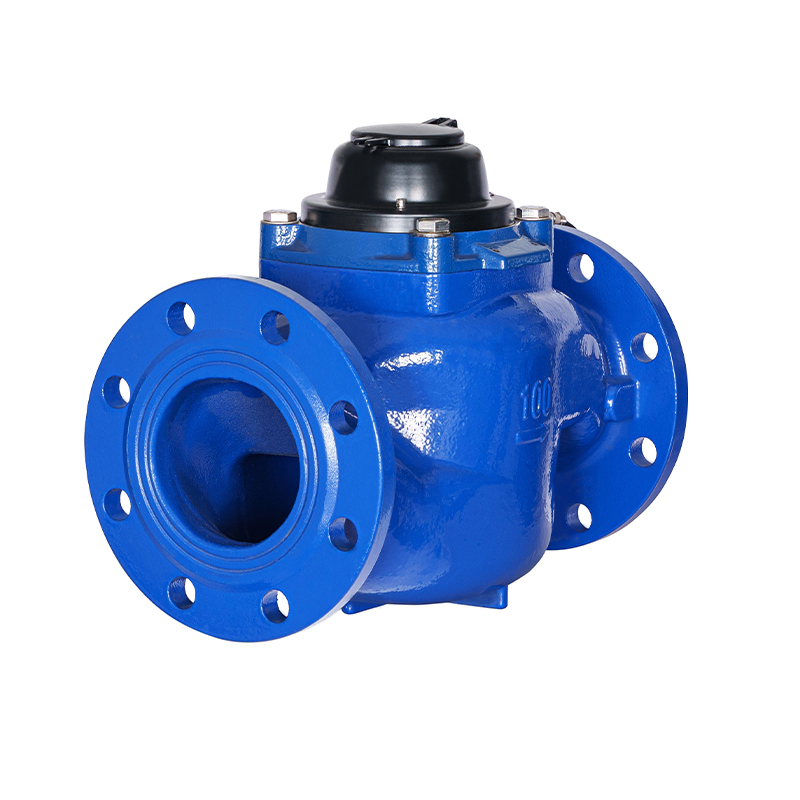

How Does the High-Precision Vertical Screw Wing Detachable Photoelectric Direct-Reading Water Meter's Mechanical Design Ensure Precision and Easy Maintenance?
The core design principle of this meter is centered on achieving and maintaining exceptional measurement accuracy under the highly variable conditions encountered in industrial and commercial water supply pipelines, as well as in District Metering Area management. This is achieved through the synergy of its unique vertical flow mechanism, full flow detection, and advanced component protection.
Vertical Screw Wing Performance and Full Flow Detection
The vertical screw wing mechanism differs fundamentally from traditional horizontal meters. By orienting the measurement element vertically, the meter is exceptionally adept at handling the varied flow profiles found in larger pipes. The screw wing is designed to be highly sensitive to the fluid movement, offering linear rotation even at extremely low flow rates.
This sensitivity is maximized through the implementation of full flow detection technology. Full flow detection means that the meter is engineered so that virtually the entire cross sectional area of the pipe is monitored for flow, ensuring that even minute movements of water are registered. This technology ensures the high precision measurement is maintained not just at peak usage times, but critically, during periods of minimal water draw. Accurate low flow measurement is essential for identifying small leaks or unauthorized consumption, which are major components of non revenue water.
The large sizes, from DN40 through DN200, typically service industrial users or primary distribution arteries where flow fluctuations are common and extreme. The capacity of this meter to operate effectively across a vast range of flow velocities is embodied by its Wide Range Ratio. A wide range ratio signifies that the meter can accurately measure water from a tiny trickle to a full bore surge, making it suitable for occasions with large flow fluctuations and meeting the diverse water consumption needs of modern infrastructure. This versatility eliminates the need for multiple meter types or sizes within a single application, simplifying inventory and commissioning. The inherent stability of the vertical screw wing ensures that the meter can withstand these flow variations without sacrificing calibration or suffering accelerated mechanical wear. The precision engineering of the internal components guarantees that this high level of accuracy is sustained throughout the meter’s operational lifetime.
Magnetless Technology and Anti Interference Design
The commitment to data security and metrological integrity is underlined by two key protective design features: Magnetless Sensing Technology and the robust anti interference design.
The use of Magnetless Sensing Technology is a direct response to a persistent challenge in metering: external magnetic interference. Older generation water meters often rely on magnetic coupling to transmit the rotation of the internal measuring element to the external register. This reliance makes them vulnerable to external magnets, which can be illegally used to slow or stop the meter's registration. By adopting magnetless technology, this advanced water meter completely eliminates this vulnerability, ensuring the accuracy and veracity of the metering data are protected from fraudulent manipulation. The meter remains highly sensitive to water flow while being entirely inert to external magnetic fields, a critical requirement for securing utility revenue and maintaining fair trade settlement practices.
The anti interference design includes a built in stainless steel filter screen. This feature is crucial for maintaining the long term stability and reliability of the internal mechanism. Domestic water quality, while generally potable, often contains fine particulate matter, sediment, and small debris. Over time, these particles can cause abrasion to the high precision gearing, bearings, and the edges of the screw wing, leading to measurement drift or total seizure. The integrated stainless steel filter screen effectively filters out these potential contaminants, ensuring the screw wing mechanism remains clean and operates smoothly. This adaptability to domestic water quality guarantees long term stable operation, significantly reducing the probability of field failures and minimizing the associated maintenance calls. The filter’s construction is robust and resistant to corrosion, maintaining its protective function over many years of continuous service.
Removable Structure for Simplified Service
The long term maintenance efficiency of the High-Precision Vertical Screw Wing Detachable Photoelectric Direct-Reading Water Meter is guaranteed by its innovative Removable Structure. This design feature significantly extends the meter’s service life and dramatically reduces the labor and complexity involved in repair or calibration.
In traditional, non removable meters, any need for repair, such as a register malfunction or internal component failure, necessitates the complete removal of the entire meter body from the pipeline. This usually involves isolating the section of pipe, draining the water, and disconnecting large, flanged connections, which is a time consuming and highly disruptive process.
With the removable structure, the main body of the meter remains permanently installed within the water supply pipeline. The core measuring element and the register—the two parts most likely to require maintenance or calibration—are integrated into an integrated movement cartridge that can be easily extracted. This facilitates maintenance and calibration because the entire mechanical movement can be pulled out as a single unit without disturbing the pipe connections. The process can be completed swiftly by a technician, allowing for the rapid exchange of a faulty movement with a newly calibrated replacement. This mechanism supports an efficient in workshop repair cycle where the removed movements can be serviced and stored for future redeployment, thereby extending the total service life of the meter and maximizing capital efficiency. The ease of access ensures that calibration checks, which are legally mandated in many jurisdictions, can be performed with minimal disruption to the water service.
What High-Precision Vertical Screw Wing Detachable Photoelectric Direct-Reading Water Meter's Intelligent Features Enable Smart Management?
The utility of a high performance water meter in the twenty first century extends far beyond its mechanical accuracy; it is equally defined by its capability to communicate and integrate seamlessly within an intelligent network. The High-Precision Vertical Screw Wing Detachable Photoelectric Direct-Reading Water Meter is designed with intelligent functions that make it an ideal choice for modern water metering, providing clear data and enabling comprehensive remote management.
Direct Data Reading for Unquestionable Clarity
A crucial feature for maintaining billing transparency and minimizing disputes is the meter’s ability to provide direct data reading. The meter offers an optional photoelectric direct reading or passive direct reading counter.
The concept of direct reading, especially via photoelectric technology, is vital because it captures the exact numerical state of the mechanical register at the moment of reading. Unlike pulse counting meters, which infer the total volume based on rotation pulses and can suffer from errors due to signal loss or interference, the direct reading method provides an exact, clear, and accurate copy of the meter’s current mechanical totalizer.

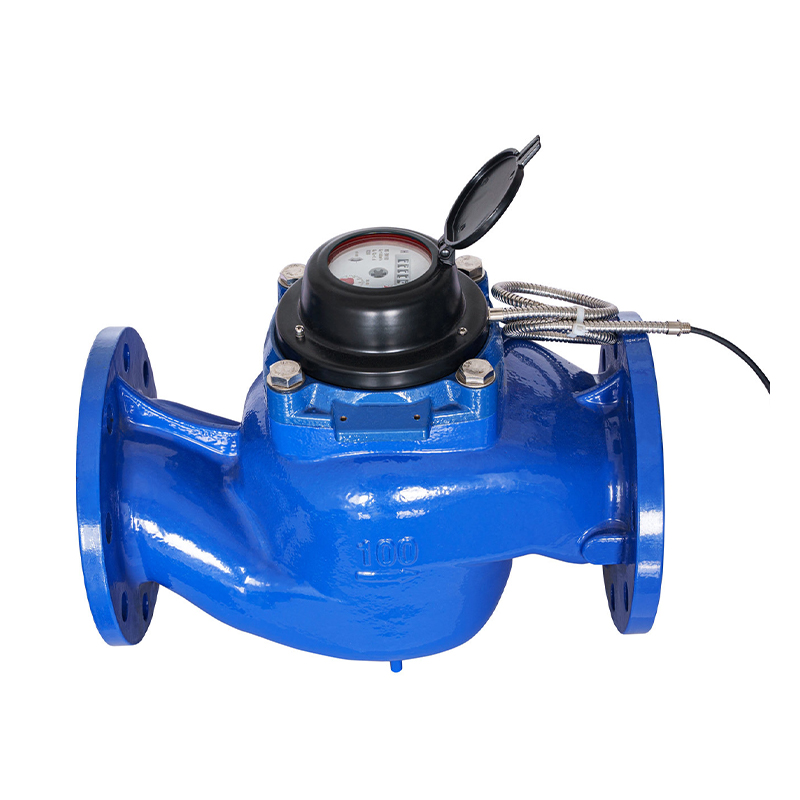

Photoelectric Direct Reading: This advanced method uses optical sensors to read the position of the physical number wheels of the register. This ensures that the electronic reading is synchronized perfectly with the mechanical display. It provides high resolution data and confirms clear and accurate data, which is essential for trade settlement of industrial and commercial users where billing accuracy is critical.
Passive Direct Reading: This is another alternative that achieves a similar goal, providing a tamper proof, highly reliable reading of the actual accumulated volume. Both options eliminate the need for manual, error prone readings and ensure that the electronically transmitted data is verifiable and unquestionable, thereby enhancing trust between the utility and the consumer. The integrated design features a compact structure, which facilitates easy installation across the required size range of DN40 to DN200 and ensures the optical reading components are protected from environmental damage.
Seamless Integration through Multiple Communication Methods
For a water meter to be effective in a modern smart network, its communication flexibility is paramount. This meter supports a variety of communication protocols, allowing utilities to choose the transmission method best suited to their existing infrastructure and geographical needs. This versatility is the engine behind Remote Data Transmission.
Wired Connectivity: The meter supports RS485 communication, a robust, standardized serial communication protocol. RS485 is highly reliable for medium distance wired networks, making it ideal for dense commercial or industrial environments where meters are grouped closely together. It ensures high speed, dependable data acquisition with minimal latency, supporting real time monitoring applications.
Wireless Wide Area Connectivity:
For vast geographical areas or scattered installations, the meter integrates advanced wireless technologies:
Narrowband Internet of Things: Narrowband Internet of Things is a low power wide area network technology specifically designed for smart metering. It offers excellent penetration in challenging environments, such as basements or underground vaults, and uses very little power, ensuring the battery life of the communication module is exceptionally long. It transmits data efficiently and economically, making it a cost effective solution for widespread meter deployment.
Fourth Generation Wireless Technology: The integration of 4G capability allows the meter to communicate directly over established cellular networks. This offers higher bandwidth and ubiquitous coverage, enabling frequent data transmissions and immediate reporting of alarms or critical events, which is particularly useful for meters in remote locations or those used for network monitoring.
These multiple communication methods enable Remote Data Transmission, allowing the meter to send consumption figures, alarms, and status updates directly to the utility’s central management platform. This eliminates the need for expensive and time consuming field visits for meter reading, improves data collection frequency, and provides the necessary real time data for advanced analytical programs.
Versatile Application in Modern Water Management
The superior performance and intelligent functions of the High-Precision Vertical Screw Wing Detachable Photoelectric Direct-Reading Water Meter position it as a foundational component for various modern water management applications.
Trade Settlement and Revenue Assurance: Given its high measurement accuracy, magnetless integrity, and direct reading capability, the meter is perfectly suited for use in the trade settlement of industrial and commercial users. Accurate and undeniable readings are essential for equitable billing and securing the utility’s revenue stream. The meter’s large capacity range of DN40 through DN200 specifically targets these high consumption, high value accounts.
District Metering Area Management: The meter is an indispensable tool for District Metering Area or DMA management. In a DMA, large meters like this one are strategically placed at the boundaries of smaller, defined zones within the distribution network. By accurately measuring the total water input into a DMA and comparing it to the sum of consumption recorded by all smaller meters within that area, utility managers can calculate the non revenue water for that zone. The ability to measure accurately at low flows is critical here, as small, continuous leaks that contribute to non revenue water are often the first things identified by the high precision low flow detection. The remote data transmission capability ensures that this essential boundary data is collected frequently, allowing for prompt intervention and repair of network leaks, which is the primary goal of effective DMA management.
The combined benefits of high precision mechanical measurement, robust protection against interference, a simplified maintenance structure, and advanced communication capabilities make this water meter an ideal choice for modern water metering that emphasizes efficiency, accuracy, and smart network operation.
