WI-DN50-DN200 Water Cube Irrigation Water Meter
  • WI-DN50-DN200 Water Cube Irrigation Water Meter
  • WI-DN50-DN200 Water Cube Irrigation Water Meter
  • WI-DN50-DN200 Water Cube Irrigation Water Meter

WI-DN50-DN200 Water Cube Irrigation Water Meter

Summary

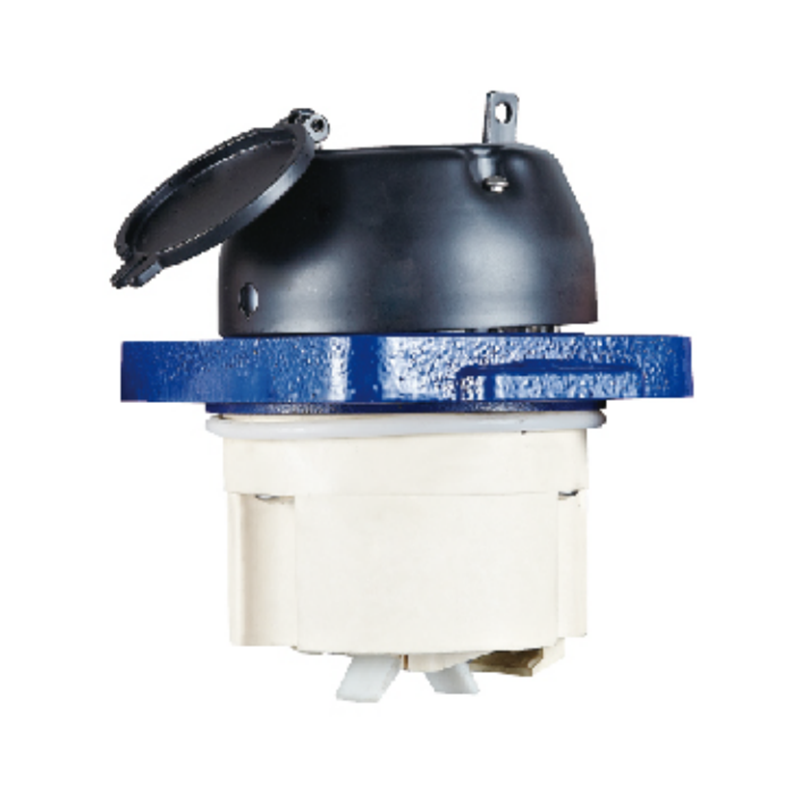

Different from ordinary water meters, the structural design has low pressure loss and large flow capacity, making it particularly suitable for measuring water with high flow rates and poor water quality.

The magnetic transmission dry structure is not easy to block, and the counter is clean and displayed clearly. The counter can rotate 360 ° for easy reading.

Adopting advanced thermal spraying technology in the industry, the watch case has corrosion resistance and extends its service life.

Adopting a high wear resistance bearing system, suitable for long-term use in water flows with poor water quality.

Can be equipped with communication counter/direct reading counter/copper sealed counter, multiple pulse signal outputs (single/double/triple reed, metal sensor, Hall element).

The appearance design of the product is practical and sturdy, and it is protected by a steel cover, suitable for outdoor use. It can be configured with an anti pry protection cover.

  • Technical Parameters
  • About us
  • Contact us

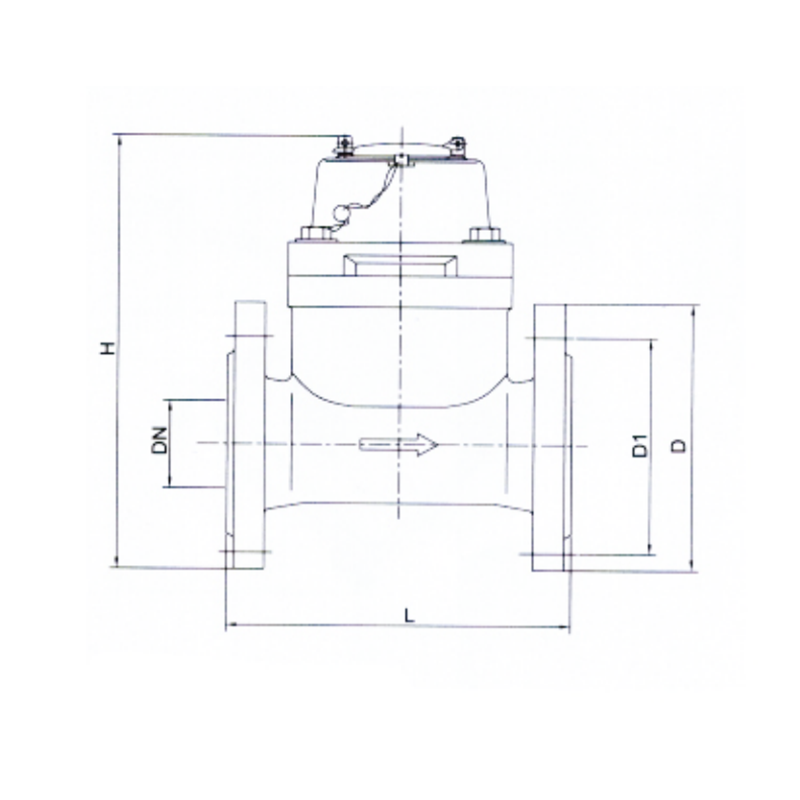

Technical Parameter

Nominal diameter

DN

mm

50 65 80 100 125 150 200

Common traffic

Q3

m3/h

30 50 90 125 175 250 450

Overload flow rate

Q4

m3/h

70 120 120 300 300 500 800

Boundary flow

Q2

m3/h

6 12 12 30 30 50 80

Minimum flow rate

Q1

m3/h

2.4 4.8 4.8 12 12 20 32

Pressure loss level





-p 10

-p 10

-p 10

-p 10

-p 10

-p 10

-p 10

Display range

min

m3

0.0005/0.002 0.0005/0.002

max

m3

999,999/9,999,999 9,999,999/99,999,999

Temperature rating





T50/90

T50/90

Voltage withstand level





MAP10/16

MAP10/16

Pulse value



m³/p

0.1/1 0.1/1 0.1/1 0.1/1 1/10 1/10 1/10

Flange outer diameter

D

mm

165

185

200 220 250 285 340

Number of unilateral bolt holes - hole diameter



pc-mm

4-φ19

4-φ19

4/8-φ19

8-φ19

8-φ19

8-φ23

8/12-φ23

Bolt hole center circle diameter

D1

mm

125 145 160 180 210 240 295

Length

L

mm

200 200 225 250 250 300 350

Height

H

mm

252 269 275 295 305 372 372

Weight



kg

10 13 14 19 22 27 43
