Stable and reliable long-distance transmission of meter data to AMR/AMI system

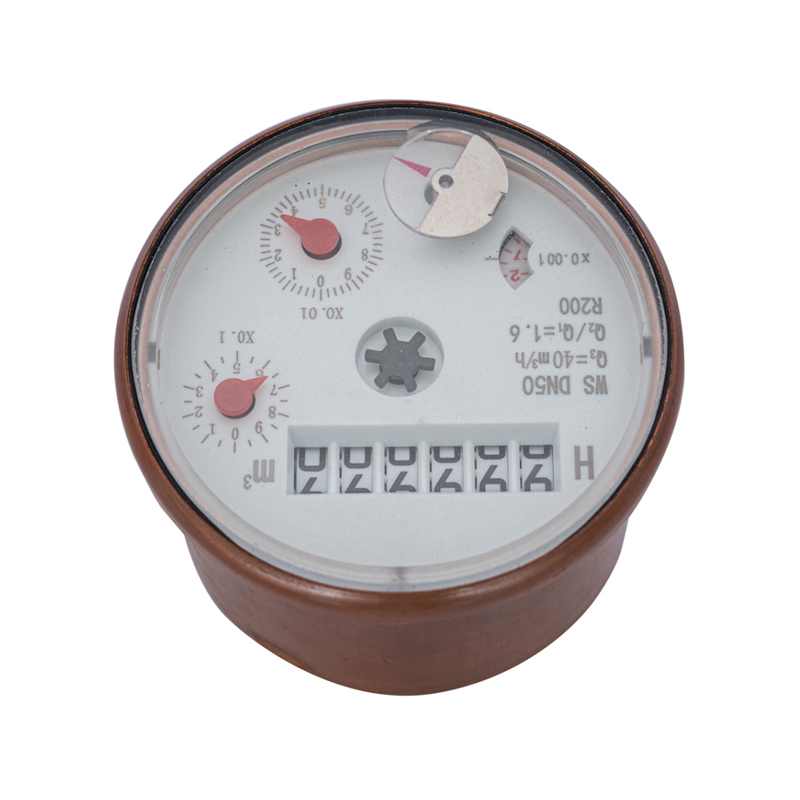

All types of large-diameter water meters in the Water Cube can be equipped with different forms of pulse remote transmission sensor components, and the pulse remote transmission sensor components can be installed on the meter before leaving the factory, or can be assembled on the water meter according to actual needs after the water meter is installed on site to achieve remote data collection

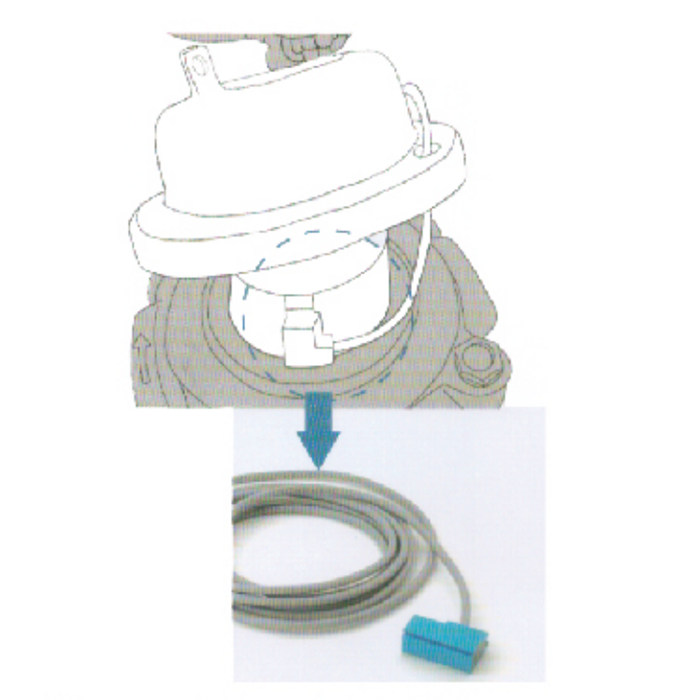

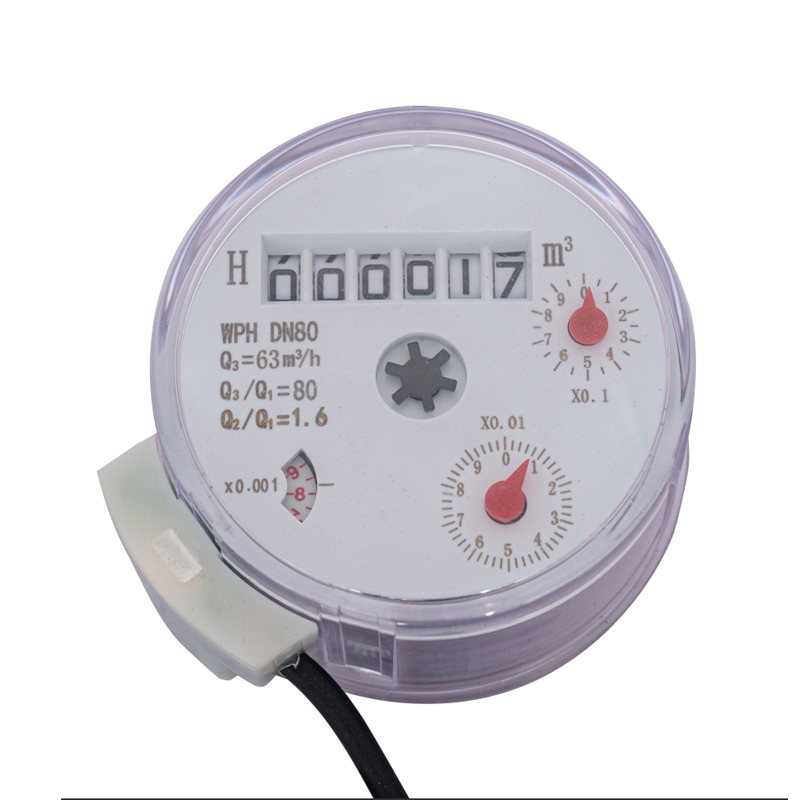

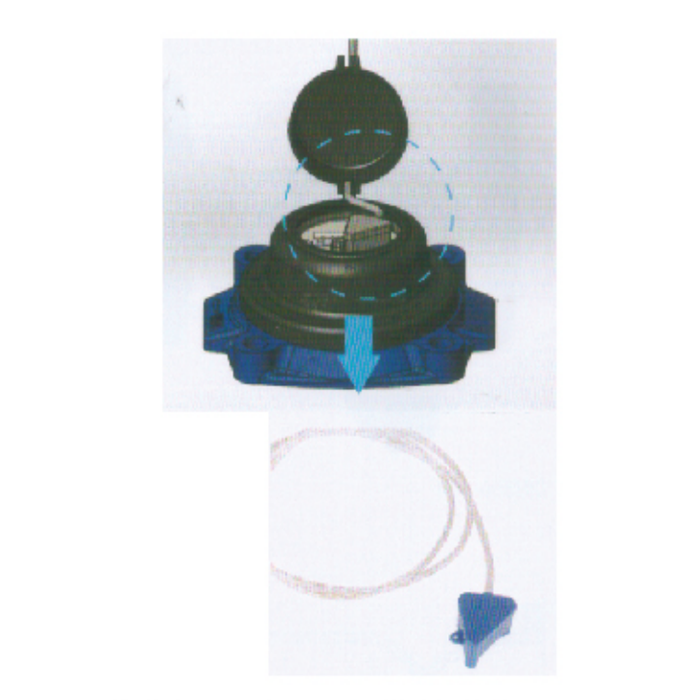

Water Cube Reed Tube Pulse Remote Transmission Sensor Assembly
As a passive pulse remote transmission sensor component, the water cube main pipe is designed with the end circuit in a normally open state. When the magnetic steel on the water meter counter rotates, the magnetic field undergoes periodic strength changes, causing the dry arrow tube component to undergo periodic instantaneous closure, thereby generating a pulse signal. The reed switch component benefits from its characteristic of not requiring external power supply during operation, making it the best choice for battery powered intelligent terminals.
The Water Cube three reed tube pulse component is equipped with three highly sensitive inert gas filled reed tubes, which have stable counting, strong resistance to external interference, and can measure forward and reverse flow rates. At the same time, it can determine whether there is strong magnetic field interference from the outside. This component is very suitable for remote monitoring modules of large caliber industrial and commercial water meters.
