1. It records the total water consumption flowing through the tap water pipeline. It cannot be used for metering sewage or corrosive liquids.
2. This water meter adopts a removable structure: the water meter does not need to be removed from the pipeline, and the movement can be pulled out for repair or replacement.
3. The measuring mechanism has good universality, which reduces the need for spare parts. It also features low pressure loss and a long service life.
4. It can be reserved for magnetic or non-magnetic signaling pointers. Various remote transmission devices can be configured according to different needs to realize the remote meter reading function.
Home / Products / WPH Horizontal Spiral Wing Water Meter / DN400-600 Horizontal Removable Water Meter
DN400-600 Horizontal Removable Water Meter
- Technical Parameters
- About us
- Contact us
External dimensions and weight
| Model | Caliber |
Long |
Tall |
Tall |
Connection method |
Weight |
||
|
mm |
Flange outer diameter |
Bolt hole center circle diameter |
Number of connecting bolts |
kg |
||||
|
LXLC(Y)-50/50F |
50 |
200 |
256/245(F) |
400 |
165 |
125 |
4xM16 |
12.0 |
|
LXLC(Y)-65/65F |
65 |
200 |
266/255(F) |
400 |
185 |
145 |
4xM16 |
13.5 |
|
LXLC(Y)-80/80F |
80 |
225 |
276/265(F) |
400 |
200 |
160 |
8xM16 |
14.5 |
|
LXLC(Y)-100/100F |
100 |
250 |
286/275(F) |
400 |
220 |
180 |
8xM16 |
15.5 |
|
LXLC(Y)-125/125F |
125 |
250 |
301/290(F) |
400 |
250 |
210 |
8xM16 |
24.5 |
|
LXLC(Y)-150/150F |
150 |
300 |
345/335(F) |
500 |
285 |
240 |
8xM20 |
32.0 |
|
LXLC(Y)-200/200F |
200 |
350 |
373/365(F) |
500 |
340 |
295 |
8xM20 |
41.0 |
|
LXLC(Y)-250/250F |
250 |
450 |
493/485(F) |
710 |
395 |
350 |
12xM20 |
83.0 |
|
LXLC(Y)-300/300F |
300 |
500 |
516/505(F) |
730 |
445 |
400 |
12xM20 |
99.0 |
|
LXLC(Y)-400/400F |
400 |
600 |
631/620(F) |
830 |
565 |
515 |
16xM24 |
163.0 |
|
LXLC(Y)-500/500F |
500 |
800 |
739/730(F) |
930 |
670 |
620 |
20xM24 |
270.0 |
|
LXLC(Y)/R-50 |
50 |
200 |
256 |
400 |
165 |
125 |
4xM16 |
12.0 |
|
LXLC(Y)/R-65 |
65 |
200 |
266 |
400 |
185 |
145 |
4xM16 |
13.5 |
|
LXLC(Y)/R-80 |
80 |
225 |
276 |
400 |
200 |
160 |
8xM16 |
14.5 |
|
LXLC(Y)/R-100 |
100 |
250 |
286 |
400 |
220 |
180 |
8xM16 |
15.5 |
|
LXLC(Y)/R-125 |
125 |
250 |
301 |
400 |
250 |
210 |
8xM16 |
24.5 |
|
LXLC(Y)/R-150 |
150 |
300 |
345 |
500 |
285 |
240 |
8xM20 |
32.0 |
|
LXLC(Y)/R-200 |
200 |
350 |
373 |
500 |
340 |
295 |
8xM20 |
41.0 |
Note:
1) The flange connection shall be in accordance with the specifications of GB/T172416-2008/XG-2011 PN10 integral cast iron flange dimensions, and special specifications shall be proposed when ordering.
2) The height G dimension is necessary for disassembling the movement. The external dimensions and weight are for reference only, and the actual product shall prevail.

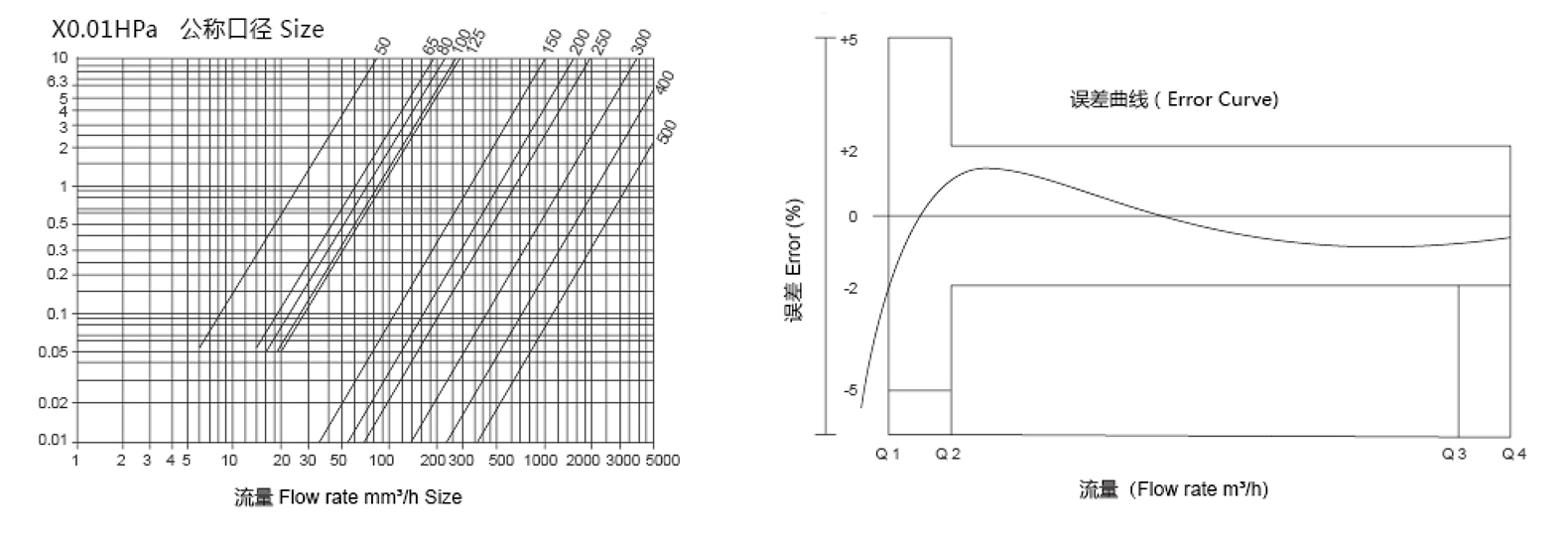

Pressure loss curve / Performance error curve
Technical indicators
1. Flow parameters
|
Caliber |
Q3/Q1 |
Overload flow rate |
Common traffic |
Boundary flow |
Minimum flow rate |
Minimum reading |
Maximum reading |
|
m³/h |
L/h |
m³ |
|||||
|
50 |
100 |
50 |
40 |
640.0 |
400.0 |
0.001 |
999999 |
|
80 |
800.0 |
500.0 |
|||||
|
50 |
1280.0 |
800.0 |
|||||
|
65 |
100 |
78.75 |
63 |
1008.0 |
630.0 |
||
|
80 |
1260.0 |
787.5 |
|||||
|
50 |
2016.0 |
1260.0 |
|||||
|
80 |
100 |
78.75 |
63 |
1008.0 |
630.0 |
||
|
80 |
1260.0 |
787.5 |
|||||
|
50 |
2016.0 |
1260.0 |
|||||
|
100 |
100 |
125 |
100 |
1600.0 |
1000.0 |
||
|
80 |
2000.0 |
1250.0 |
|||||
|
50 |
3200.0 |
2000.0 |
|||||
|
125 |
100 |
200 |
160 |
2560.0 |
1600.0 |
||
|
80 |
3200.0 |
2000.0 |
|||||
|
50 |
5120.0 |
3200.0 |
|||||
|
150 |
100 |
312.5 |
250 |
4000.0 |
2500.0 |
0.01 |
9999999 |
|
80 |
5000.0 |
3125.0 |
|||||
|
50 |
8000.0 |
5000.0 |
|||||
|
200 |
100 |
500 |
400 |
6400.0 |
4000.0 |
||
|
80 |
8000.0 |
5000.0 |
|||||
|
50 |
12800.0 |
8000.0 |
|||||
|
250 |
100 |
787.5 |
630 |
10080.0 |
6300.0 |
0.1 |
99 999999 |
|
80 |
12600.0 |
7875.0 |
|||||
|
50 |
20160.0 |
12600.0 |
|||||
|
300 |
100 |
1250 |
|
16000.0 |
10000.0 |
||
|
80 |
1000 |
20000.0 |
12500.0 |
||||
|
50 |
|
32000.0 |
20000.0 |
||||
|
400 |
100 |
2000 |
1600 |
25600.0 |
16000.0 |
||
|
80 |
32000.0 |
20000.0 |
|||||
|
50 |
51200.0 |
32000.0 |
|||||
|
500 |
100 |
3125 |
2500 |
40000.0 |
25000.0 |
||
|
80 |
50000.0 |
31250.0 |
|||||
|
50 |
80000.0 |
50000.0 |
|||||
Maximum allowable error:
a) The maximum allowable error in the low zone (QisQ<Q2) is+5%; b) The maximum allowable error for high zone (QQQ4) is 2%.
2. Parameters
|
Project content |
parameter |
|
Temperature rating |
T30/90 |
|
Pressure rating |
MAP16 |
|
Flow field sensitivity level |
U0/D0 |
|
Pressure loss level |
△pl6 |
|
Accuracy class |
level 2 |
Note: The temperature level of LXLC (Y)/R-50~200 is T30/90.
Remote transmission scheme
